XY Axis Manual Linear Stage , Manual Station , Manual Platform PT - SD10 - 60

Brand Name : PDV

Model Number : PT-SD10-60L , PT-SD10-60R , PT-SD30-60L , PT-SD30-60R

Place of Origin : Beijing, China (Mainland)

MOQ : 1piece

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Delivery Time : 1-2 weeks

Surface Material : Aluminum Alloy-Black-anodized

Actuator Type : Micrometer Head

Min Coarse adjustment : 10μm/degree

Min Fine adjustment : 0.5μm/degree

Platform Size : 60mm×60mm

Travel Guide : Crossed Roller Bearing

Load Capacity : 5kgf(49N)

Weight : 0.35kg

Contact Now

XY Axis Manual Linear Stage , Manual Station , Manual Platform PT-SD10-60/SD30-60R

The main material of the precision manual translation table is aluminum alloy, which has high sensitivity and small overall size. This series of products have good sensitivity. The table has various sizes and moderate thickness, and can be combined in one or more dimensions. This product can still maintain strong load capacity, especially in the vertical direction or when used as z-axis.

Product features

The main material is aluminum alloy with black anodizing treatment on the surface, which is suitable for optical experiments and other fields requiring high manual adjustment accuracy.

With a scale, it is fast and convenient to read data.

It has locking function, good locking effect and strong stability.

Rich specification series and high cost performance.

Product parameters:

Model Number		PT-SD10-60L		PT-SD10-60R			PT-SD30-60L		PT-SD30-60R
Actuator Type		Micrometer Head
Operating Position		Coarse adjustment:CenterFine adjustment:Right	Coarse adjustment:CenterFine adjustment:Left		Coarse adjustment:CenterFine adjustment:Right			Coarse adjustment:CenterFine adjustment:Left
Minimum Scale		Coarse adjustment:10μm/degree Fine adjustment:0.5μm/degree
Platform Size		60×60mm
Travel Range		Coarse adjustment :±6.5mm Fine adjustment:±0.3mm
Travel Guide		Crossed Roller Bearing
Load Capacity		5kgf(49N)				2kgf(19.6N)
Moving Precision	Straightness	2μm
	Pitching	20”
	Yawing	10”
Parallelism		30μm				70μm
Driving Parallelism		10μm				15μm
Weight		0.35kg				0.5kg
Surface Material		Aluminum Alloy BLACK-Anodized

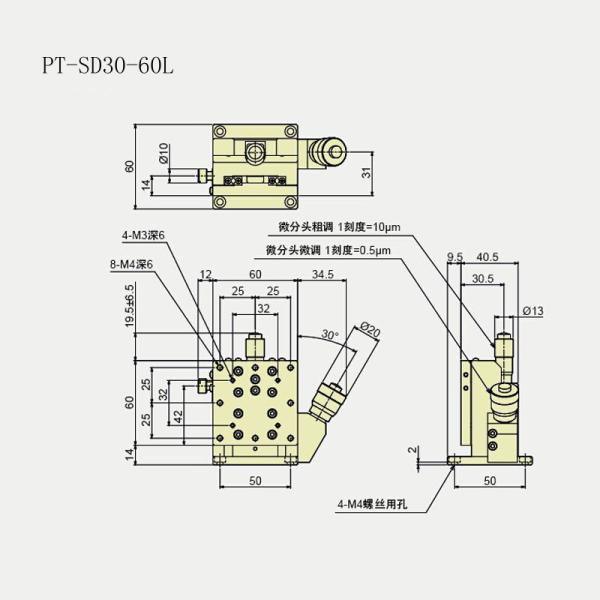

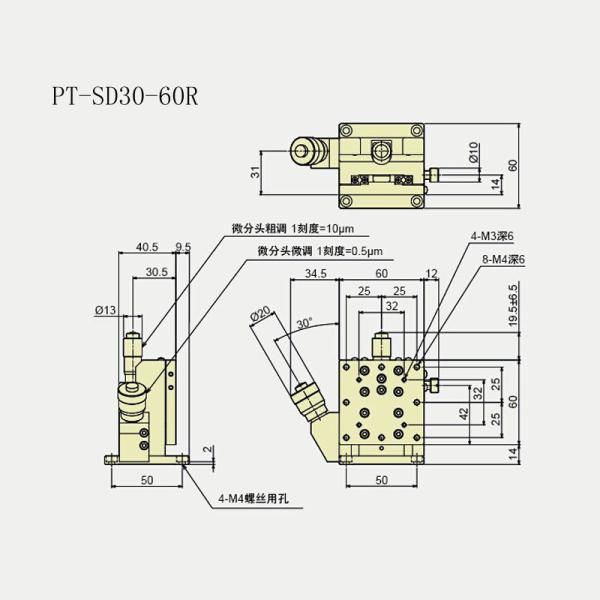

Product Dimension Map

XY Axis Manual Linear Stage , Manual Station , Manual Platform PT - SD10 - 60

XY Axis Manual Linear Stage , Z Axis Linear Slide,Manual Station , Manual Platform

Installation method of manual translation table

1. Move the platform surface to the limit position to expose 2 mounting holes. Please put the supporting bolts in for temporary fixation. Please confirm that the bolt has fully entered the bolt mounting hole, and then proceed to the next step.

2. Next, please turn the micrometer head counterclockwise to move the platform surface to the limit position on the other side. On the side opposite to the position just now, two other mounting holes will be exposed. Please put the matching bolts in and tighten them to a certain extent. After confirming that it is consistent with the installation position, completely fix the bolts of the installation hole.

XY Axis Manual Linear Stage , Manual Station , Manual Platform PT - SD10 - 60 Images
